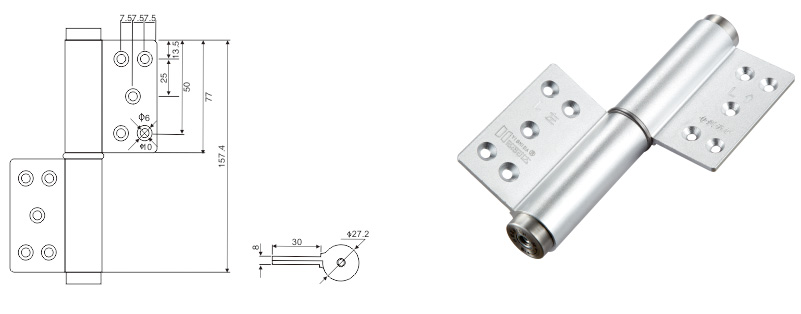

Flay-type series(ZL-20 series)

Use for wooden(30mm) & wooden doors

Hydraulic/ Dummy Hignes

Sizes as below

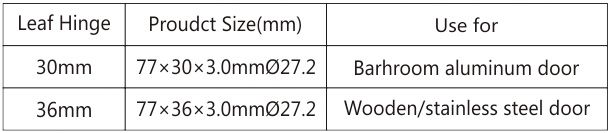

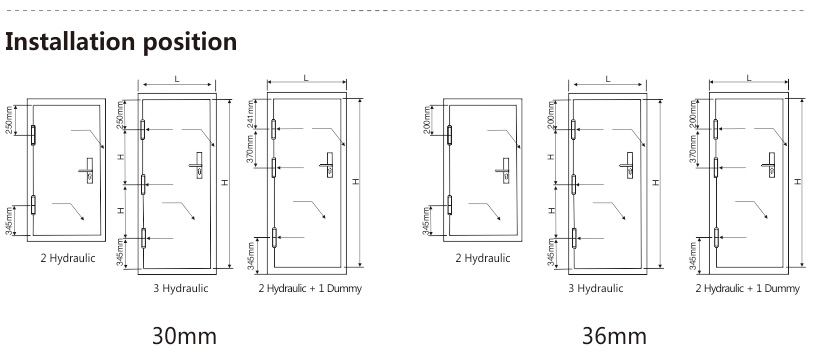

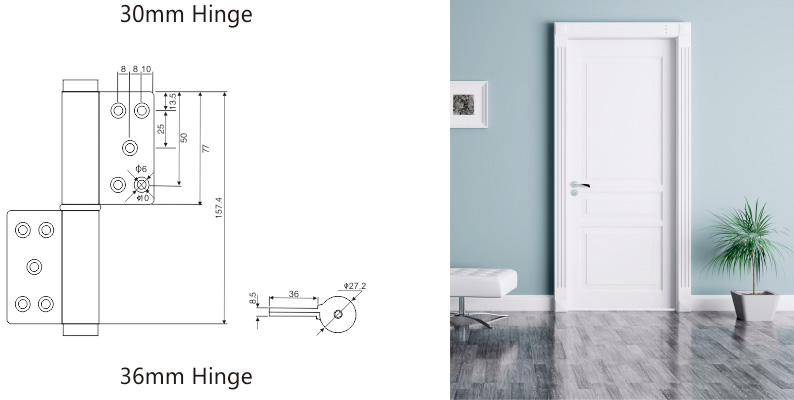

30/36mm Need groove

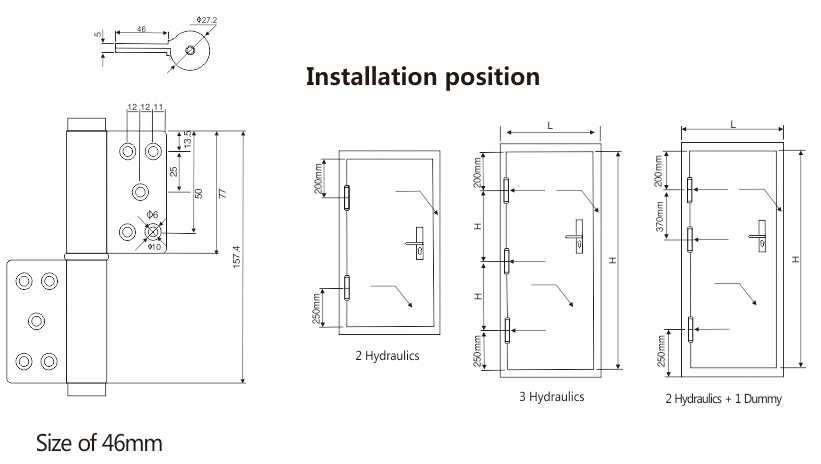

38/46mm No need groove

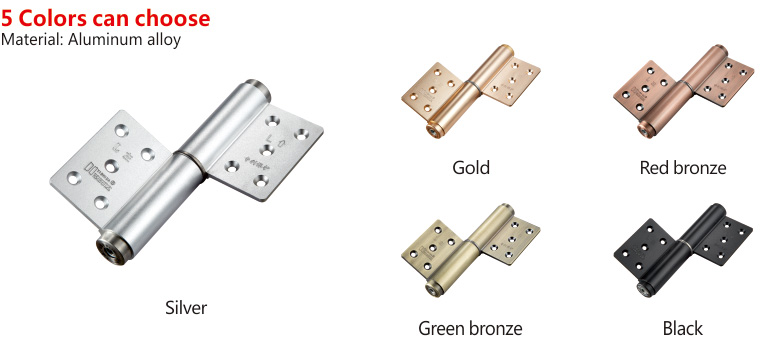

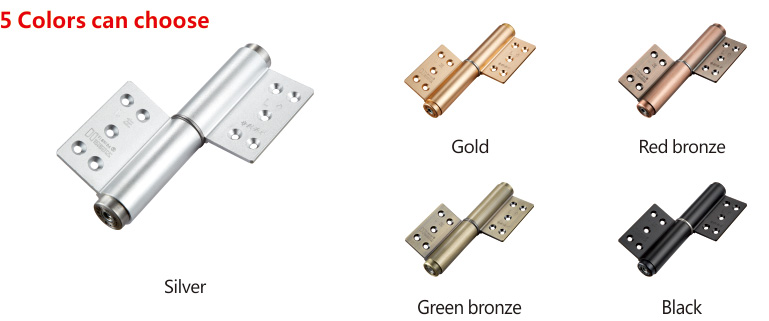

5 colors can choose
Silver/gold/Red bronze/Green bronze/Black

Description

1. Automatic stop function when open beyond 85 degreeswith closing and locking speed control;
2. Automatic closing from 170 degrees with adjustable closing and locking speed;
3. Force&speed adjustment;
4. Can reset the function when you need second installation;

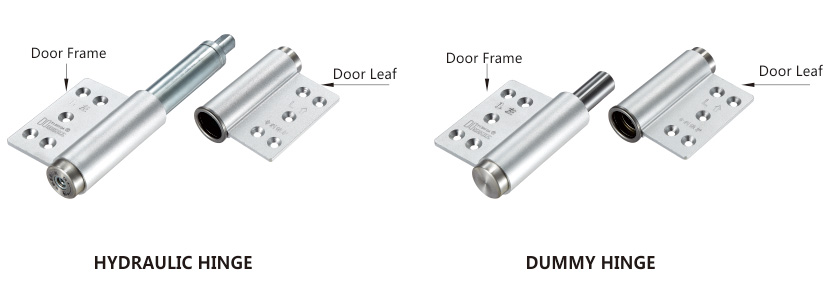

5. Can be split
Remark: Dummy hinge without any function but only bearing

---

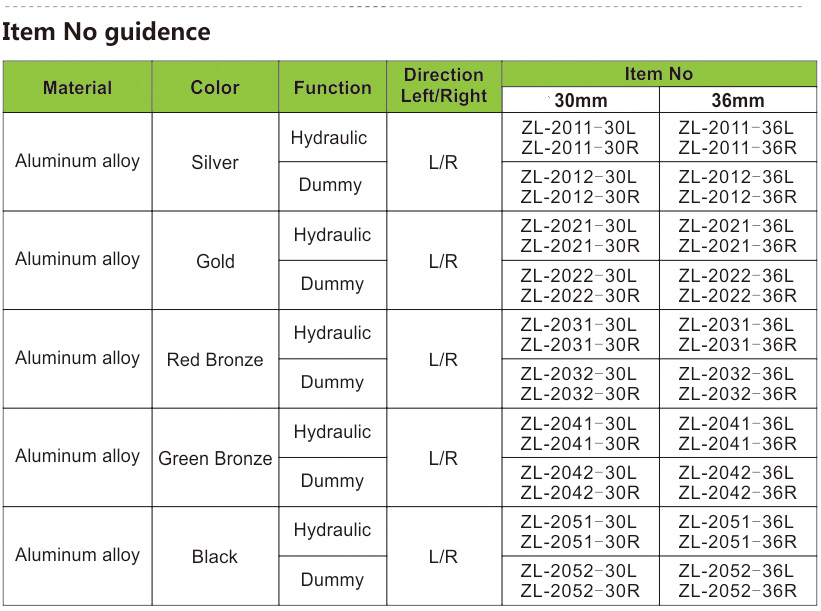

Use for washroom(30mm)&wooden doors
Need Groove


Material: Aluminum alloy

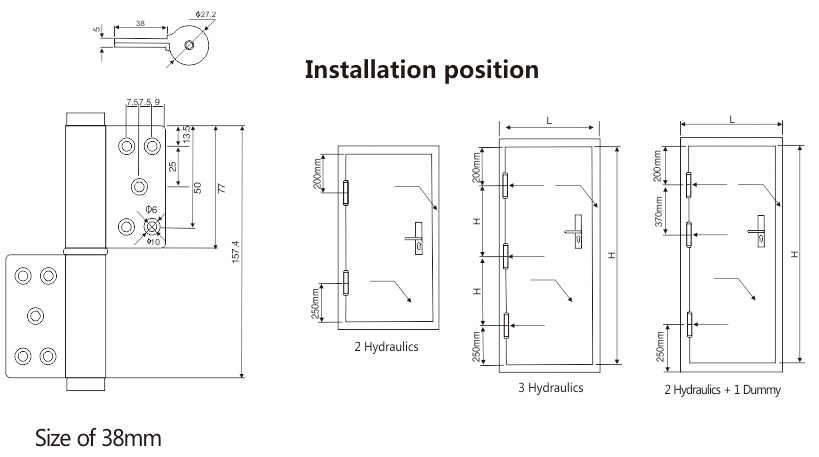

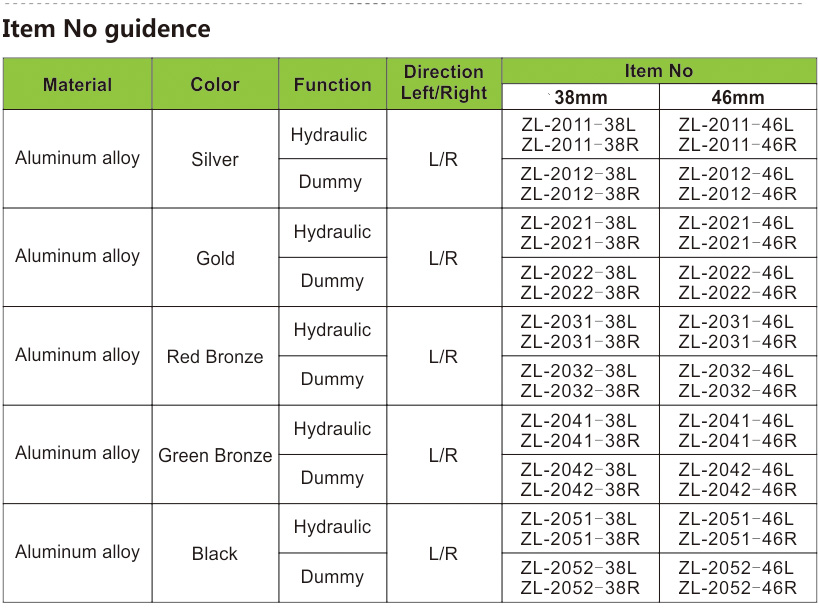

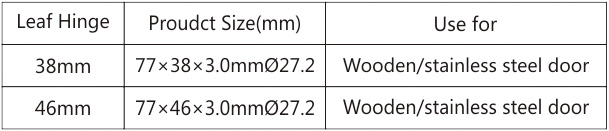

Flay Series(38/46mm) ZL-20 Series

Use for wooden door
No Need Groove
